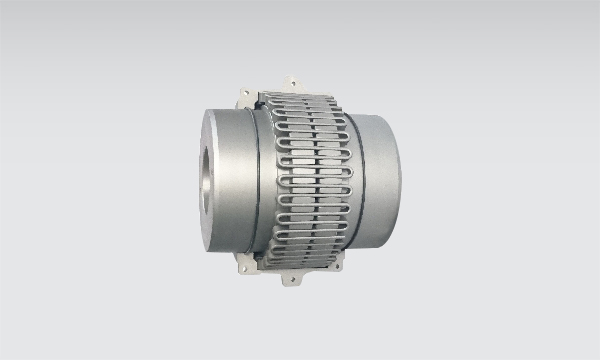

T10系列（基本型）彈簧聯軸器允許偏移量
返回產品簡要：
免費咨詢熱線0577-65205101
|
公稱轉矩 Tn N.m |
******允許安裝誤差 |
******運轉補償量 |
||||
|
徑向偏移 Y |
角向偏移 A-A1 |
軸向間距 ±10% |
徑向偏移 Y |
角向偏移 A-A1 |
軸向運動 單端1/2 |
|
|
52 |
0.15 |
0.076 |
3 |
0.31 |
0.25 |
0.3 |
|
149 |
0.15 |
0.076 |
3 |
0.31 |
0.31 |
0.3 |
|
249 |
0.15 |
0.076 |
3 |
0.31 |
0.33 |
0.3 |
|
435 |
0.20 |
0.100 |
3 |
0.41 |
0.40 |
0.3 |
|
684 |
0.20 |
0.127 |
3 |
0.41 |
0.45 |
0.3 |
|
994 |
0.20 |
0.127 |
3 |
0.41 |
0.50 |
0.3 |
|
2050 |
0.20 |
0.150 |
3 |
0.41 |
0.60 |
0.3 |
|
3730 |
0.20 |
0.180 |
3 |
0.41 |
0.70 |
0.3 |
|
6280 |
0.25 |
0.200 |
5 |
0.51 |
0.84 |
0.5 |
|
9320 |
0.25 |
0.230 |
5 |
0.51 |
0.90 |
0.5 |
|
13700 |
0.28 |
0.250 |
6 |
0.56 |
1.00 |
0.6 |
|
19900 |
0.28 |
0.300 |
6 |
0.56 |
1.20 |
0.6 |
|
28600 |
0.28 |
0.330 |
6 |
0.56 |
1.35 |
0.6 |
|
55900 |
0.30 |
0.400 |
6 |
0.61 |
1.57 |
0.6 |
|
39800 |
0.30 |
0.450 |
6 |
0.61 |
1.78 |
0.6 |
|
74600 |
0.30 |
0.500 |
6 |
0.61 |
2.00 |
0.6 |
|
103000 |
0.38 |
0.560 |
6 |
0.76 |
2.26 |
0.6 |
|
137000 |
0.38 |
0.600 |
6 |
0.76 |
2.46 |
0.6 |
|
186000 |
0.38 |
0.680 |
6 |
0.76 |
2.72 |
1.3 |
|
249000 |
0.46 |
0.740 |
13 |
0.92 |
2.99 |
1.3 |
|
336000 |
0.46 |
0.800 |
13 |
0.92 |
3.28 |
1.3 |
|
435000 |
0.48 |
0.890 |
13 |
0.97 |
3.60 |
1.3 |
|
559000 |
0.48 |
0.960 |
13 |
0.97 |
3.90 |
1.3 |
|
746000 |
0.50 |
1.070 |
13 |
1.02 |
4.29 |
1.3 |
|
93200 |
0.50 |
1.270 |
13 |
1.02 |
4.65 |
1.3 |
|
1130000 |
0.62 |
1.350 |
20 |
1.25 |
5.20 |
2.0 |
|
1320000 |
0.62 |
1.460 |
20 |
1.25 |
5.68 |
2.0 |
